Breather Adapters (kits)

Breather Adapter Kits play a crucial role in fluid management systems, ensuring optimal performance and longevity of machinery. These adapters are available in a dark grey finish and come with various Quick Connect options to suit different operational needs.

Key Features of Breather Adapter Kits

Multiple Quick Connect Options – Customers can choose from:

Colourized Quick Connects: Designed to match the OilSafe colour spectrum for easy identification.
No Quick Connects: A flexible option for custom configurations.
ISO-B Quick Connects: Industry-standard connections for seamless integration.

Quality Anodized Finishing – The colourised Quick Connects are subjected to rigorous testing to ensure their anodised finishes remain consistent with the OilSafe system. While slight variations in colour may occur due to the anodising process, these do not affect the product’s functionality or durability.

Durability and Performance – Manufactured with high-quality materials, these kits are built to withstand demanding environments and provide long-lasting service.

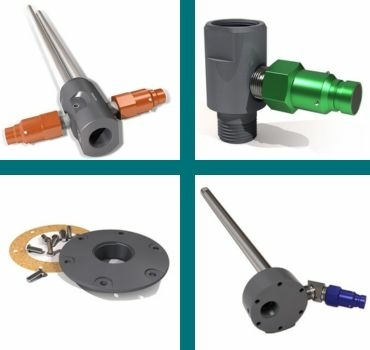

Breather Adapter Kits Line-up

Drum
Adapter Kit

Drum Adapter Kits allow breathers to be installed on any storage tank or drum.

Tell me more

Gearbox
Adapter Kit

Gearbox Adapter Kits allow breathers to be installed on any gearbox.

Tell me more

Domed Flange
Adapter Kit

Domed Flange Adapters provide a low profile yet rugged way to mount a 1" NPT breather to a hydraulic reservoir.

Tell me more

Hydraulic Reservoir
Adapter Kit

Hydraulic Reservoir Adapter Kits allow breathers to be installed on any hydraulic fluid tank or reservoir.

Tell me more

Drum Adapter Kits

Drum Adapter Kits allow breathers to be installed on any storage tank or drum; there's never been a cleaner, more effective way to store, filter and pump lubricants from a drum.

Its unique design ensures all fluid handling is managed through one adapter, while maintaining the storage container integrity.

Anodised aluminum adapter comes in a dark gray colour and configures with: no Quick Connects, ISO-B Quick Connects or Colourized Quick Connects for pumping oil in and out of drum.
Sample port for fluid analysis.
Gauge port to monitor air pressure.
Stainless steel pipe - 3/4" and 1/2".
Dispensing through ISO-B or Colourized Quick Disconnects - Available in 10 familiar OilSafe colours or silver.
Mounting Connection - 2" MNPT.

Offline filtration units easily connect to the adapter without ever disrupting the performance of the breather.

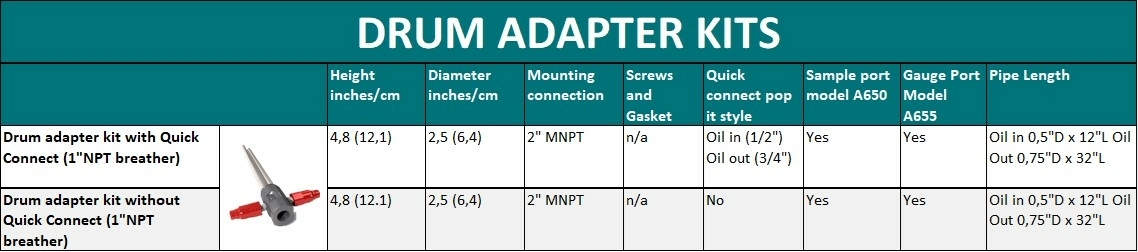

Specification of the Drum Adapter Kit:

Height

4.80"

Diameter

2.5"

Mounting connection

2"MNPT

Quick connect (2) poppet style

Oil in: 1/2"

Oil out: 3/4"

Sample port

Model AS-A651

Gauge Port

Model AS-A655

Pipe diameter/Length inch

Oil in 0.5"x 12"

Oil out: 0.75" x 32"

Benefits

Customisable
Seamless connection between your equipment and filtration system
Utilising a desiccant breather will prevent the ingression of dirt and moisture.

Drum adapter kits with colour coded quick connects

Typical Industries

Automotive
Pulp & Paper
Steel Production/Manufacturing
Food & Beverage
General Manufacturing
Mining/Construction
Power Generation
Petroleum/Chemical Refining

Breather Adapter Kits Flyer

Drum adapter kits Air Sentry

Gearbox Adapter Kits

Gearbox Adapter Kits allow breathers to be installed on any gearbox. Anodised aluminum adapters have colourised quick connects available in three sizes for pumping oil in and out without opening the gearbox to atmosphere. Offline filtration, oil changes and sampling can be handled through the adapter. They are a faster, simpler and cleaner way to handle gear oils and reduce ingression.

Gearbox Adapter Kits are available in a dark gray colour and configured with no Quick Connects, ISO-B Quick Connects or Colourised Quick Connects* available in 10 familiar OilSafe colours or silver.

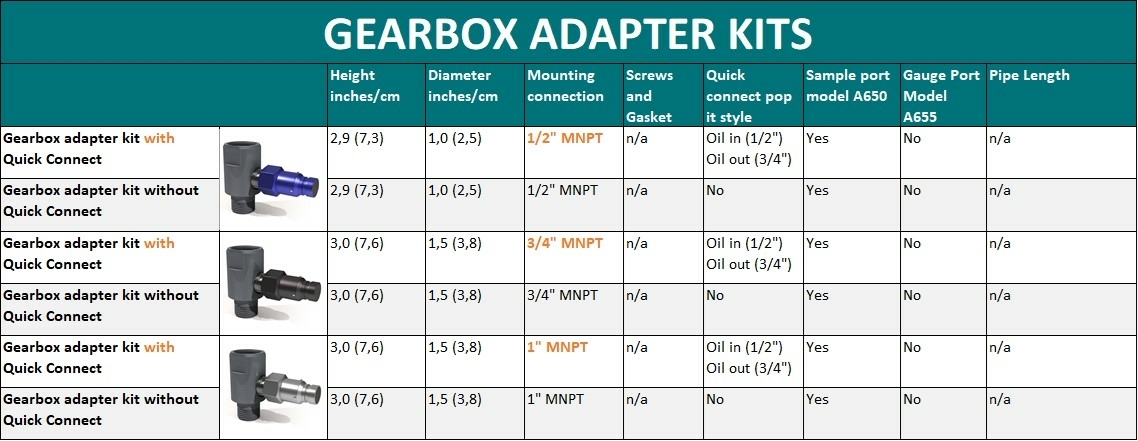

Specification of the Gearbox Adapter Kit:

Height
1", 3/4", 1/2" adapter	3"

Diameter
1" and 3/4" adapter	1,75"
1/2" adapter	1.25"

Mounting connection
1" adapter	1" MNPT
3/4" adapter	3/4" MNPT
1/2" adapter	1/2" MNPT

Quick connect pop it style
Oil in: 1/2"
Oil out: 3/4"

Sample port model AS-A651	Yes

OilSafe

Benefits

Customisable
Seamless connection between your equipment and filtration system
Utilising a desiccant breather will prevent the ingression of dirt and moisture.

Typical Industries

Automotive
Pulp & Paper
Steel Production/Manufacturing
Food & Beverage
General Manufacturing
Mining/Construction
Power Generation
Petroleum/Chemical Refining

null

Hydraulic Reservoir Adapter Kits

Hydraulic Reservoir Adapter Kits allow breathers to be installed on any hydraulic fluid tank or reservoir. Anodised aluminum adapters have colourised quick connects for pumping oil in and out, allowing the system to remain closed at all times and dramatically reducing contamination while improving oil-handling safety.

Offline filtration units easily connect to adapter without ever disrupting the performance of the breather or opening the tank.

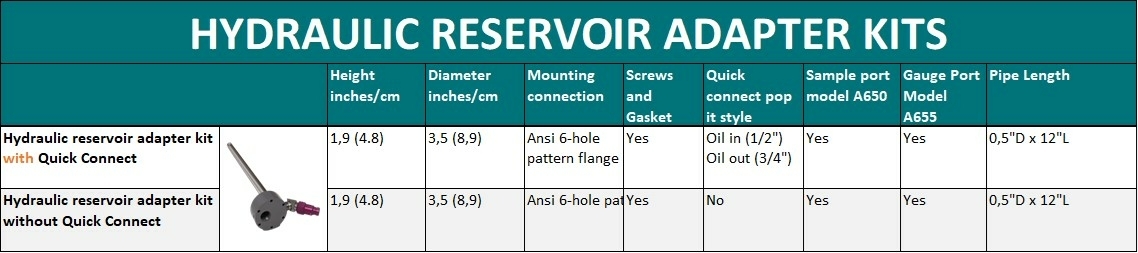

Specification of the Hydraulic Reservoir Adapter Kit:

Height

1,85"

Diameter

3,25"

Mounting connection

1" MNPT

Sample port

Model AS-A651

Gauge Port

Model AS-A655

Pipe ⌀/Length inch

Oil in: 0.5” x 12”

Oil out: 0.75” x 32”

OilSafe

Benefits

Customisable
Seamless connection between your equipment and filtration system
Utilising a desiccant breather will prevent the ingression of dirt and moisture.

Typical Industries

Automotive
Pulp & Paper
Steel Production/Manufacturing
Food & Beverage
General Manufacturing
Mining/Construction
Power Generation
Petroleum/Chemical Refining

null

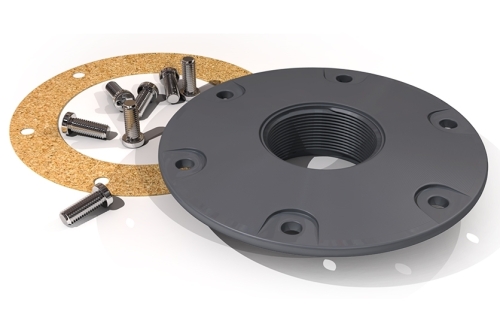

Domed Flange Adapter Kit

Domed Flange Adapters provide a low profile yet rugged way to mount a 1" NPT desiccant breather to a hydraulic reservoir.

The adapter includes six hole ANSI pattern gasket and fasteners for perfect replacement of bayonet flange and vent cap.

The beveled surface directs spills and contaminants away from the opening.

Available in a dark gray colour.

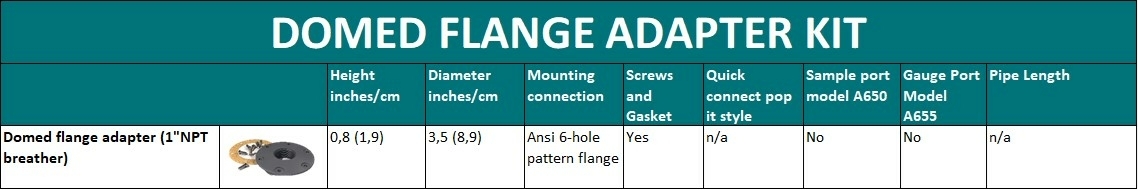

Specification of the Domed Flange Adapter Kit:

Height

0.75 (1.9)

Diameter

3.5 (8.89)

Mounting Connection

ANSI 6 hole pattern flange

Screws and Gasket

OilSafe

Domed flange adapter kit

Breather Adapters Line-Up

Breather adapters come in various types and designs, each serving specific purposes across different industries and applications. These various attachment mechanisms cater to different needs based on factors such as ease of installation, security of connection, accessibility, and the specific requirements of the system or equipment where the breather adapters are being used.Some of the common types of breather adapters include:
