The Powerhead - The Heart of the BOP System

When it comes to efficient oil dispensing, the Macnaught BOP system stands out as a game-changer. At the core of this innovation is the Powerhead, a portable and rechargeable motor that powers the BOP20 and BOP60 oil pumps. But what makes this component so special? Let’s take a closer look at how the Powerhead revolutionises oil dispensing in workshops.

What is the Powerhead and why is it so important?

The Powerhead is the detachable motor drive unit that powers the BOP system. Unlike traditional oil pumps that require separate motors for each pump, the Powerhead is interchangeable—meaning you can use one motor across multiple pump stems. This reduces costs, increases flexibility, and makes oil dispensing more efficient.

Key features of the Powerhead:

• 18V lithium-ion battery – Long-lasting and rechargeable
• Cordless operation – No air hoses or power cables needed
• Self-priming function – Ready to dispense oil in seconds
• Quick-connect system – Easy attachment to multiple pump stems
• Lightweight and portable – Move it effortlessly around the workshop

How does the Powerhead work?

The Powerhead is designed to be user-friendly and quick to set up.

Here’s how it works:

1. Charge the battery – The Powerhead runs on an 18V lithium-ion battery, which charges using the supplied charger.
2. Attach to a pump stem – Simply fit the Powerhead onto the desired pump stem and lock it in place with the lever.
3. Turn it on – The switch at the front activates the unit, and it self-primes automatically.
4. Pull the trigger – Once primed, oil is dispensed effortlessly with just a pull of the trigger.

💡 Tip: If using a brand-new Powerhead and stem, a manual prime is required for the first use. After that, it will self-prime automatically.

Why is the Powerhead a Game-Changer?

Many workshops struggle with inefficient oil dispensing methods, whether it’s manual pumps that cause fatigue or air-operated systems that require bulky hoses. The BOP Powerhead eliminates these issues by offering cordless, efficient, and fatigue-free operation.

• No more manual pumping – Reduce strain and save time.
• Battery-powered convenience – No need for external power sources.
• Use across multiple pump stems – Cost-effective and versatile.
• Low maintenance – Simple design with fewer moving parts.

How long does the Powerhead Battery last?

One of the most common questions we receive is:

"How long can I use the Powerhead before recharging?"

The Powerhead’s 18V battery is designed for extended use, capable of dispensing up to 105 litres of oil on a single charge. This means you can complete multiple oil dispensing tasks without needing to stop for a recharge.

If the battery runs low, simply swap it out with a spare (if available) or recharge it quickly using the supplied charger.

Can I use one Powerhead for different oils?

Yes! The Powerhead is designed to be used with multiple pump stems, each designated for specific oil types. This means you can dispense:

✔ Engine oil ✔ Hydraulic oil ✔ Gear oil

Each oil type requires its own pump stem, but the Powerhead can be transferred between them easily, ensuring a contamination-free and cost-effective solution.

General Safety

• DO NOT lift the powerhead with locking lever. Handle powerhead with care.
• DO NO DROP.  Make sure the powerhead is securely connected/attached to the stem.
• DO NOT leave the powerhead sitting on top of the stem unlocked. Stop operating the pump if any leakings at the joints are noticed.
• DO NOT modify the pump in any way.
• DO NOT use the product in potentially explosive atmosphere or areas.
• DO NOT expose the product to fire and source of heat.  Use product in well ventilated area.  Only use genuine Macnaught battery and chargers with this product.  Only use genuine Macnaught battery and chargers with this product.
• DO NOT ALLOW POWER TOOL TO RUN DRY.  Battery pack and powerhead should be protected from water.
• DO NOT expose the powerhead to a nearby magnet as its performance will be adversely affected.  The battery operated pump should always be used in a vertical position.
• DO NOT expose power tool to rain or wet conditions.  Use power tool and accessories in accordance with these instructions.
• DO NOT allow power tool to operate unattended.
• DO NOT use power tool if the switch is damaged and does not turn on and off.  Disconnect the battery from the powerhead before making any adjustment, changing accessories, or storing power tool.
• DO NOT Leave the powerhead sitting on top of the stem unlocked.
• Keep the cordless power tool and plastic bag away from babies and children.

Operating Instructions

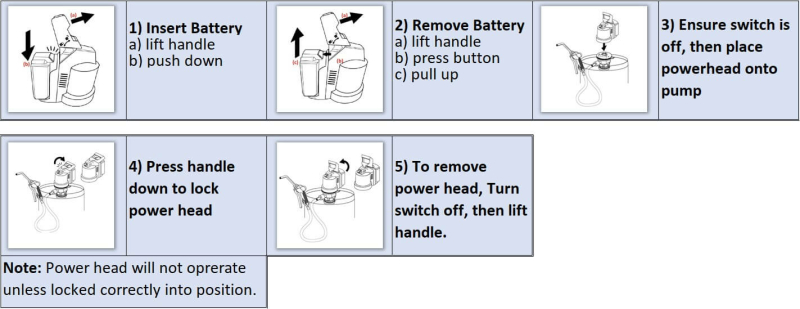

Insert/Remove Battery

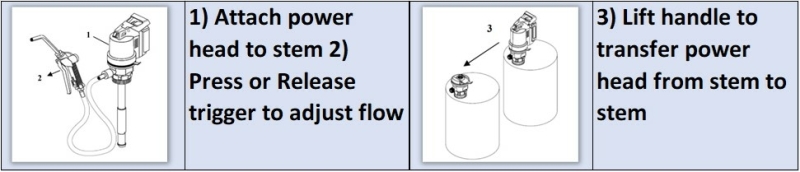

General Operation

Attach powerhead to stem. Press or Release trigger to adjust flow. Lift handle to transfer powerhead from stem to stem.

Final thoughts: the power of the Powerhead

The Powerhead is the ultimate workshop companion, providing efficiency, ease of use, and flexibility. Whether you’re reducing manual labour, saving time, or switching between oils seamlessly, this innovative motor unit is designed to make your life easier.

💡 Want to upgrade your oil dispensing system?
Contact us today to find out more about the BOP system and Powerhead technology!
