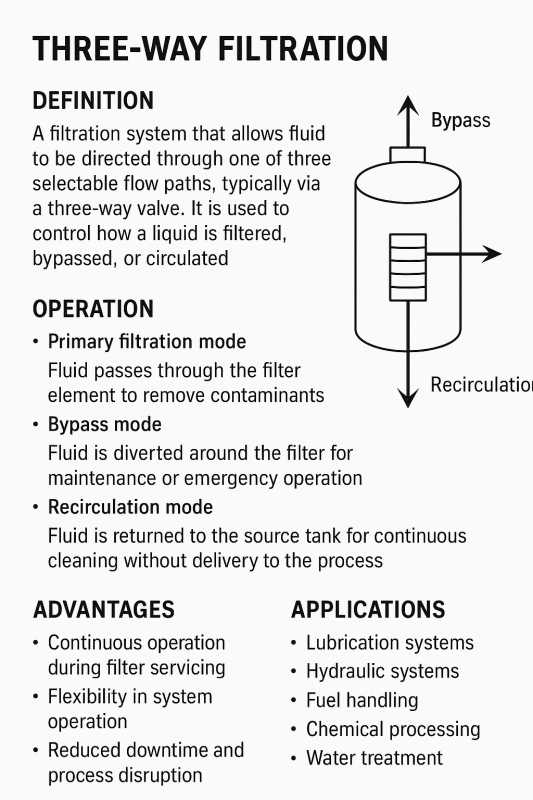

Three-Way Filtration

Definition: A filtration system that allows fluid to be directed through one of three selectable flow paths, typically via a three-way valve. It is used to control how a liquid is filtered, bypassed, or circulated.

Operation:

• Primary filtration mode – Fluid passes through the filter element to remove contaminants.
• Bypass mode – Fluid is diverted around the filter for maintenance or emergency operation.
• Recirculation mode – Fluid is returned to the source tank for continuous cleaning without delivery to the process.

Features:

• Single housing with a three-way valve or manifold
• Designed for quick changeover between modes
• Suitable for various filter media (cartridge, bag, mesh)
• Often fitted with pressure gauges for monitoring

Advantages:

• Continuous operation during filter servicing
• Flexibility in system operation
• Reduced downtime and process disruption

Applications:

Lubrication systems, hydraulic systems, fuel handling, chemical processing, water treatment.
